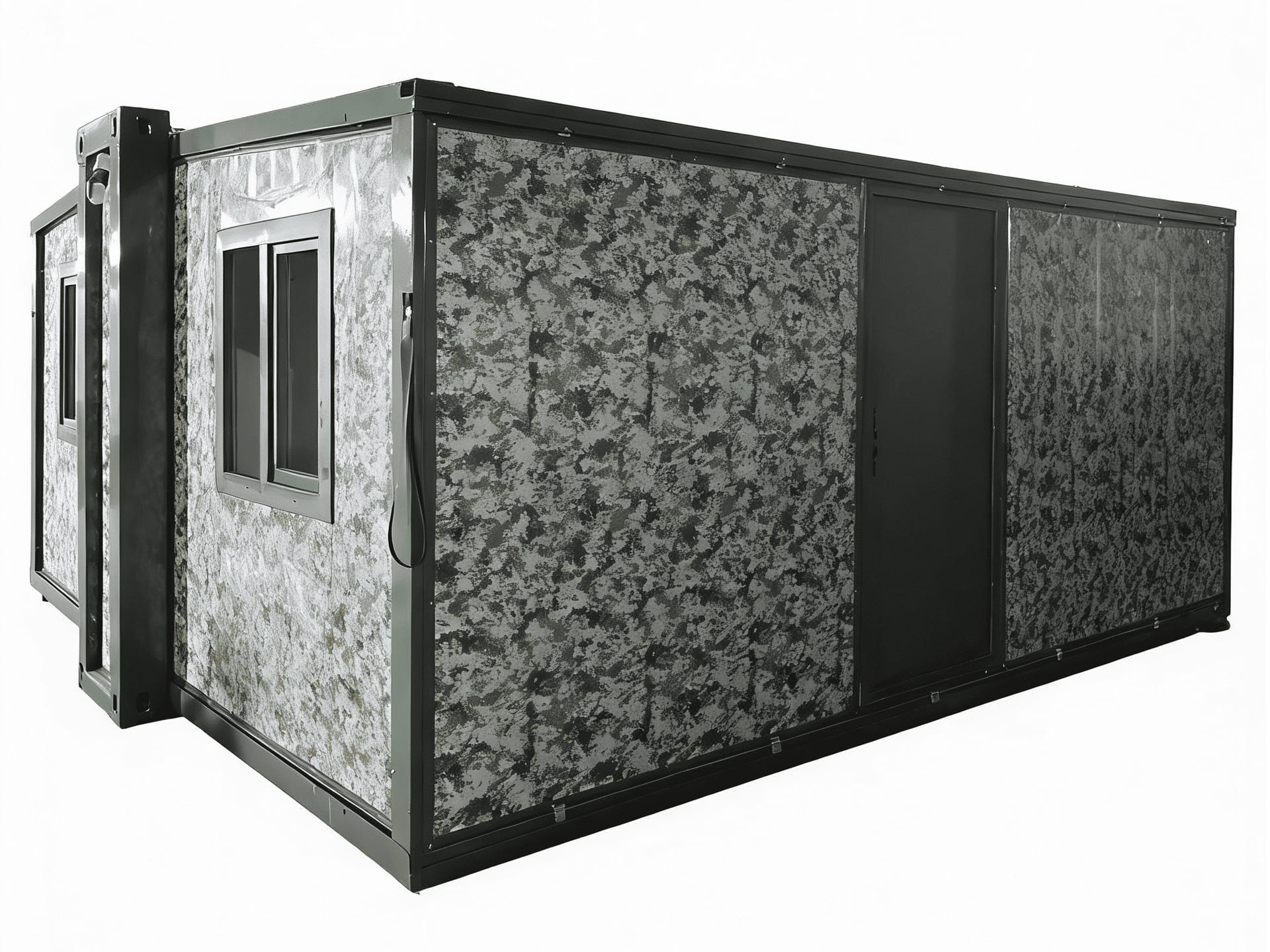

20ft Foldable Camp Office | Expandable Container

Description

A Compact 20ft Foldable Office That Expands to Approx. 27.5 m²

Designed for construction sites, worker camps, remote projects, and temporary facilities, this expandable camp office combines a compact folded footprint with practical working space after deployment.

Key Specifications

A Flexible 20ft Camp Office for Remote and Construction Sites

The 20ft Foldable Camp Office Expandable Container is designed to provide practical working space where conventional permanent buildings are not readily available or where a rapidly deployable facility is required.

Once expanded, the unit provides approximately 27.5 m² of usable floor area, allowing space for desks, workstations, storage, meeting areas, or other site-specific office arrangements.

Its compact folded configuration also makes it suitable for projects where transportation and installation efficiency are important.

700 mm Folded Width for Efficient Site Deployment

The unit folds to approximately 5900 × 700 × 2480 mm for transportation and storage.

The compact 700 mm folded width helps optimize container loading and allows up to 6 units to be loaded in a 40HQ container, depending on the final configuration and packing method.

This makes the model particularly suitable for contractors, camp operators, project developers, and distributors purchasing multiple units for the same project.

27.5 m² of Expandable Office Space

When fully expanded, the unit provides approximately 27.5 m² of floor area.

The open interior can be arranged as a site office, project management office, staff workspace, meeting room, reception area, or combined office and accommodation facility.

The internal dimensions are approximately 5460 × 4640 × 2230 mm, providing practical space for desks, chairs, storage cabinets, equipment, and other office furniture.

70mm EPS Insulated Wall Panels and Double-Glazed Windows

The standard wall system uses 70 mm EPS color steel composite panels with an EPS core density of approximately 12 kg/m³.

Thermal-break aluminum doors and windows with double glazing are used to provide a practical combination of insulation, durability, and weather protection.

The construction specification can be further adapted according to the project’s climate, intended use, and local requirements.

Applications for Construction Camps and Temporary Projects

The expandable camp office can be used for a range of temporary and semi-permanent project facilities, including:

• Construction Site Offices
• Worker Camp Offices
• Project Management Offices
• Site Administration Offices
• Remote Workspaces
• Mining and Infrastructure Projects
• Temporary Meeting Rooms
• Staff Facilities
• Engineering Project Offices

Its expandable design allows the same basic unit to be configured for different site requirements and project durations.

Available Configurations

1.Empty

A flexible open-shell configuration for customers who want to complete the interior according to their own design, local standards, and project requirements.

Suitable for:

• Worker accommodation
• Site offices
• Modular accommodation projects
• Distributor projects
• Tourism
• Temporary accommodation
• Remote accommodation

2.Bathroom Included

Includes a bathroom package supplied for on-site assembly, helping optimize transport and allowing the final plumbing connections to be completed according to the project layout.

Typical bathroom equipment includes:

• Toilet
• Shower
• Wash basin
• Faucet
• Water supply and drainage connections
• Exhaust fan

The factory can also prepare required openings and pipe provisions in advance when the bathroom location and layout are confirmed before production.

3.Fully Equipped

Office furniture / desks / storage / electrical equipment

Final equipment, layout, and specifications can be customized according to the project requirements.

Customizable for Different Camp Office Requirements

The 20ft Foldable Camp Office can be customized according to different project requirements.

Possible customization options include:

• Office layout
• Desk and workstation arrangement
• Meeting area
• Storage space
• Door and window configuration
• Electrical system
• Lighting
• Air conditioning
• Bathroom location
• Plumbing
• Interior finishes
• Furniture and equipment
• Exterior color

For larger projects, the layout and technical specifications can be reviewed with the factory before production.

Optimized for Bulk Transportation

One of the key advantages of the 20ft 700 model is its compact folded width. The compact folded design allows multiple camp office units to be transported in a single 40HQ container.

Loading reference: Up to 6 sets per 40HQ container.

For larger construction, infrastructure, tourism, or remote accommodation projects, this loading efficiency can help reduce transportation requirements per unit.

Actual loading capacity should be confirmed according to the final configuration and packing method.

Designed for Fast Deployment

The unit is transported in its compact folded configuration and expanded at the installation site.

After positioning the unit on a suitable foundation, the folding sections are opened and secured according to the manufacturer’s installation procedure. Interior fittings, bathroom components, utilities, and other project-specific elements can then be completed according to the selected configuration.

Foundation requirements, installation procedures, and local approvals should be confirmed according to the project location and intended use.

Suitable for Contractors, Camp Operators and Distributors

The 20ft Foldable Camp Office Expandable Container is suitable for contractors, construction companies, camp operators, project developers, and distributors requiring multiple temporary or semi-permanent office units.

With different configuration options and efficient 40HQ loading capacity, multiple units can be supplied for larger projects while maintaining a consistent product specification.

Distributor and repeat-order pricing can be discussed according to quantity, configuration, and annual purchasing volume.

FAQ

Q 1.What is a 20ft Foldable Camp Office?

A 20ft Foldable Camp Office is a compact modular office unit that folds for transportation and expands at the installation site. The unit provides approximately 27.5 m² of floor area when fully expanded.

Q 2.How large is the expanded camp office?

The expanded external dimensions are approximately 5900 × 4800 × 2480 mm, providing approximately 27.5 m² of floor area.

Q 3.How wide is the unit when folded?

The folded dimensions are approximately 5900 × 700 × 2480 mm, giving the unit a compact 700 mm folded width.

Q 4.How many camp offices fit in a 40HQ container?

The standard loading reference is up to 6 units per 40HQ container. Actual loading capacity depends on the final configuration and packing method.

Q 5.Can the camp office be used on construction sites?

Yes. The unit can be used as a construction site office, project management office, worker camp office, temporary workspace, meeting room, or other project facility, subject to local requirements.

Q 6.Can the office layout be customized?

Yes. Office layout, doors, windows, electrical systems, lighting, air conditioning, furniture, bathroom position, and other interior specifications can be customized.

Q 7.Is a bathroom available?

Yes. A bathroom package is available and can be supplied as separate components for on-site assembly. The factory can prepare required openings and pipe provisions when the location is confirmed before production.

Q 8.What wall panels and windows are used?

The standard specification uses 70 mm EPS color steel composite wall panels with approximately 12 kg/m³ EPS density, together with thermal-break aluminum doors and windows with double glazing.

Request a Quote for a 20ft Foldable Camp Office

Need temporary office space for a construction site, worker camp, infrastructure project, or remote location?

Tell us your required quantity, project location, intended use, and preferred configuration. We can provide factory-direct pricing, specifications, container loading information, and customization options.
